| Performance |
|
Parameters
|
Test Conditions
|
Mil-R-122 Specification
|
Typical Test Data
|

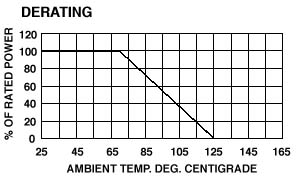

| Max. Rated Operating Temperature |
-
|
125°C
|
| Working Temperature Range |
-
|
-55°C to + 155°C |
| Max. Working Voltage |
-
|
FL500 & FL501=300V, FL502 & FL503=350V |
| Power Conditioning |
25°C Rated Voltage, 96 hrs. |
±0.02%
|
±0.005%
|
| Thermal Shock |
-65°C/30min <-->+175°C/30 min, 5 cycles |
| Overload |
Rated voltage x 2.5, 5 Sec |
| Solderability |
245°C, 5sec
|
over 95% coverage
|
over 95% coverage
|
| Resistance to Solvents |
(1) Isopropyl Alcohal + Mineral Spirits (2) Water + Butyl Cellosolve + Monoethanolamine |
no damage
|
no damage
|
| Low Temperature Storage and Operation |
-65°C, No Load, 24 hrs.-->Rated Voltage, 45 min. |
±0.01%
|
±0.0025% |
| Terminal Strenength |
0.908Kg(2pounda), 10sec. |
±0.01%
|
±0.0025%
|
| Dielectric Withstanding Voltage |
Atmospheric: AC300V, 1min/ Barometric: 8mmHg, AC200V,1min. |
±0.01%
|
±0.0025%
|
| Insulation Resistance |
DC500V, 2min. |
over 10,000M
|
over 10,000M
|
| Resistance to Soldering Heat |
350°C, 3sec. |
±0.01%
|
±0.0025%
|
| Moisture Resistance |
+65°C~-10°C, 90%RH~98%RH, Rated Voltage, 10 Cycles (24hrs) |
±0.05%
|
±0.01%
|
| Shock |
100G, 6ms, Sawtooth Wave, X,Y,z, each 10 shocks |
±0.01%
|
±0.0025%
|
| Vibration, High Frequency |
200G, 10Hz~10Hz, 20min,X,Y,Z, each 2.5hrs |
±0.01%
|
±0.0025%
|
| Life |
125°C, Rated Power, 1.5hr.-ON, 0.5hr.-OFF, 2000hrs |
±0.05%
|
±0.015%
|
| Life 85°C Power Rating |
85°C, Rated Power x 2, 1.5hr. -ON, 0.5hr.-OFF, 2000hrs. |
±0.05%
|
±0.015%
|
| Life 25°C Power Rating |
25°C, Rated Power x 2, 1.5hr. -ON, 0.5hr.-OFF, 2000hrs. |
±0.05%
|
±0.015%
|
| Storage Life |
-15°C~35°C, 15%RH~75%RH, No Load, 1000hrs |
±0.005%
|
±0.015%
|
| High Temperatur Exposure |
175°C, No Load, 2000hrs. |
±0.05%
|
±0.015%
|
| Current Noise |
-
|
-32dB
|
-42dB
|
| Thermal EMF |
-
|
0.0001%/V
|
0.00003%/V
|
| Voltage Coefficient |
-
|
1.0µV/°C
|
0.1µV/°C
|
|
use R for decimal
