TYPE RX
2.5 to 12 Watts
Vitreous Enameled Wirewound Resistor Axial Lead - Conformal Coating, Lead Free |
|
|
|
|
| FEATURES: |
|
| Coating impervious to humidity |
 |
| Flameproof, lead free |
| 5% & 10% tolerances (2% available) |
| Welded, durable construction |
| Economical |
| Solder coated copper leads |
| Alpha numerical marking |
|
|
| OVERLOAD: |
Under 6 Watts:
5 times rated wattage for 5 seconds |
6 Watts & Over:
10 times rated wattage for 5 seconds |
| TEMPERATURE COEFFICIENT: |
| 1-9.99 Ohms: ± 400 PPM/°C |
| 10 Ohms & over: ± 200PPM/°C |
| DIELECTRIC WITHSTANDING VOLTAGE |
| 1000VAC |
|

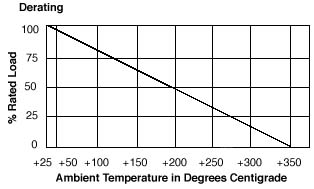

| Max. Dimension (mm) |
 |
|
|
|
Specifications
| Type |
Wattage @ 70°C |
Resistance Range |
Max Operating Voltage |
Physical Size (mm) |
| (w) |
(Ω) |
(V) |
L(max) |
O(max) |
d |
| RX2 |
2.5 |
1Ω-1k |
100 |
12.7 |
Φ5.6 |
Φ0.8 |
| RX3 |
3 |
1Ω-1k |
120 |
14.0 |
Φ7.0 |
Φ0.8 |
| RX4 |
4.3 |
1Ω-3.6k |
160 |
23.0 |
Φ7.0 |
Φ0.8 |
| RX6 |
6 |
1Ω-6.8k |
200 |
22.2 |
Φ8.0 |
Φ0.8 |
| RX8 |
8 |
1Ω-9.1k |
400 |
33.9 |
Φ8.0 |
Φ1.0 |
| RX9 |
9 |
1Ω-11k |
500 |
38.1 |
Φ8.0 |
Φ1.0 |
| RX11 |
11 |
1Ω-15k |
750 |
46.8 |
Φ10.8 |
Φ1.0 |
| RX12 |
12 |
1Ω-13k |
750 |
53.5 |
Φ8.0 |
Φ1.0 |
|
|
| ORDERING INFORMATION |
|
|
|
| Example: 6W 10ohm 5% |
|
|
|
|
RX6
|
10R0
|
J
|
|
Type
|
Resistance
|
Tolerance
|
|
4 digit. <100  use R for decimal. >100 4th digit is multiplier
|
J = 5%
K = 10%
|
|
|
|
|
