Thin Film Current Sensing Chip Resistor - SRT Series

Features: Applications:

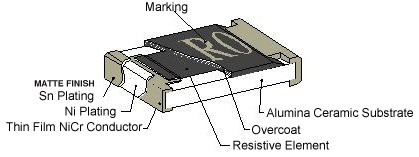

Thin Film Process Power Management Applications
Very Tight Tolerance from ±0.5% ~ 1% Switching Power Supply
Extremely Low TCR from ±50 ~ ±200 PPM/ºC Over Current Protection in Audio Application
Resistance Values from 50m to 999m ohms Voltage Regulation Module (VRM)
High Purity Alumina Substrate for High Power Dissipation DC-DC Converter, Battery Pack, Charger, Adaptor
Products with Pb-free Terminations Meet RoHS Requirements Automotive Engine Control
Switching Power Supply Disk Driver
Automotive Engine Control
Portable Devices (PDA, Cell phone)
