Specifications |
| Standard Resistance Tolerance: 10% & 20%, For 5% consult factory |

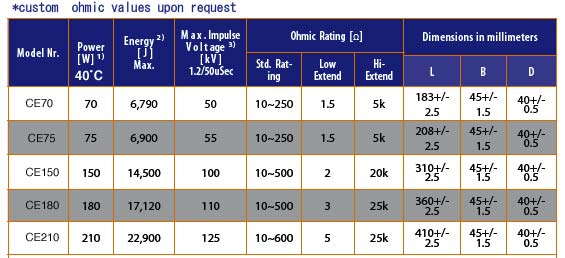

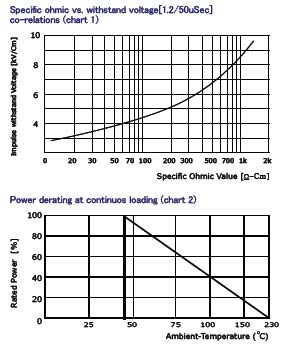

| Rated Power & Derating: The rated power shown for each resistor is calculated at 40°C. When used over 40°C the continous working power must be reduced by 10 to 90% of the rated power. This will depending on application. Please consult factory. |
| Surface Temperature Control: For continous working, the surface temperature must not exceed 100°C. A fan or oil bath should be used at high temperatures. |
| Short Time Overload: 250°C max. for 1 minute |

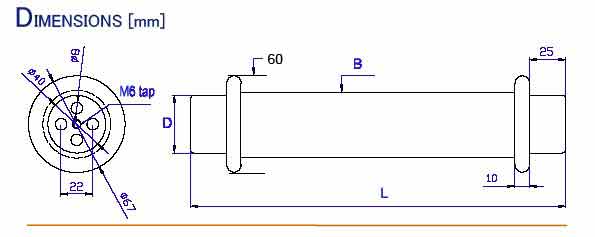

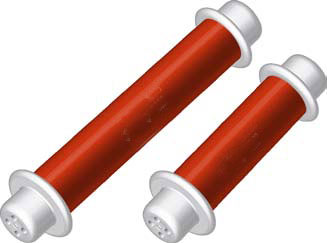

| Corona Ring End Cap: The corona ring end cap provides additional protection to the electrical field during pulsing, high voltage and for low resistance values. |
| Distance needed between 4 or more resistors in parallel and Power Derating: |
|
Gap Distance
|
Derating of Rated Power
|
|
1.5MM
|
60%
|
|
2.0MM
|
70%
|
|
2.5MM
|
80%
|
|
| TCR: 0.15%/°C Typ. (+1500ppm/°C) |
|
VCR (KV/CM)
|
Resistance Range Ohms
|
|
1.5%
|
2 - 500
|
|
2.5%
|
600 - 1.5K
|
|
5.0%
|
1.6k - To Max.
|
|
Load Life Stability:  R5% Max.@ Less than 50% of Rated Power and R7% Max.@ 100% of Rated Power, at 500h |
| Short Time Overload: R2% Typ. for 10 times rated power for 5 seconds |
| Corona Ring End Cap: Aluminum |
|
| The described specifications & dimennsions subject to change without notice. |
