HIGH VOLTAGE METAL FILM RESISTOR
Features
Resistance Tolerances: 1.0%, 2.0%, 5.0%
Temperature Coefficients: 50, 100, 200 ppm
Working Temperature: -55 ~+155°C.
Flame Proof Coating
Marking: Color Band or Alpha Numeric
Applications:
Special conductive film withstands high voltage far over the maximum working voltage of general purpose resistors. Suitable for high voltage applications, such as TV, high voltage transformer circuit, high voltage detection, etc.
Dimensions: (mm)
Type
No.		 L max
(body length) 		D max
(body diameter) 		Resistance
Tolerance
RV-25 13 4.5 1, 2, & 5%
RV-50 17 6.5
RV-100 21 6.7
RV-200 27 9.5
General Specifications:
Type
No.		 Power Rating

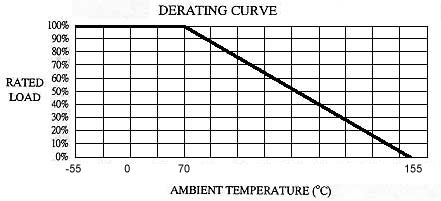

@ 70°C		 Max. Working
Voltage		 Min.
Resistance		 Max.
Resistance
RV-25 1/4W 1.6KV DC
1150V RMS		 100KΩ 300MΩ
RV-50 1/2W 3.5KV DC
2.5KV RMS		 100KΩ 300MΩ
RV-100 1W 7.0KV DC
5.0KV RMS		 100KΩ 300MΩ
RV-200 2W 10.0KV DC
7KV RMS		 100KΩ 300MΩ

Performance Specifications
Characteristics Limits
Temperature Coefficient 200PPM 100PPM and 50 PPM available on certain values
Short Time Overload ± (1%+0.05R)
Dielectric Withstanding Voltage - RV25 500V
Dielectric Withstanding Voltage -RV-50,100 & 200 700V
Insulation Resistance - RV-25 104 MΩ Min.
Insulation Resistance -RV-50, 100 & 200 104 MΩ
Voltage Coefficient 200ppm/v
Temperature Cycling ± (1%+0.05R)
Humidity ± 3%
Load Life In Humidity ± 5%
Load Life: (@ 70 °C) ± 5%
Resistance to Soldering Heat ± (1%+0.05R)
Solderability - RV-25, RV-50 95% Min.
Solderability - RV-100, RV-200 90% Min.
Terminal Strength ± (1%+0.05R)
Vibration ± (1%+0.05R)
Thermal Shock ± (1%+0.05R)
Shelf Life (one year) ± 1%

ORDERING INFORMATION
Example: 1/4w 1m 100ppm 5% tape & reel
RV-25
1004
C1
J
T/R
Type
Resistance
1st 3 digits = significant No. 4th digit = No. zeros
T.C.
C1 = 100
C2 = 200
Blank = 50
Tolerance
J= 5%
G = 2%
F = 1%
T/R = Tape & Reel
B = Bulk
