| Resistor Network SIP RNL Series | |

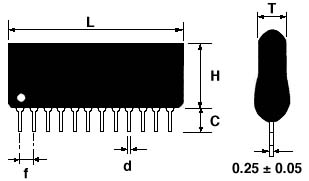

| Dimensions (mm) | ||||||
| Type | L (max) | H (max.) | T (max.) | C +0.3 -0.2 |
d ±0.1 | f ±0.2 |
| 4 pin | 10.2 | 5.08 | 2.5 | 3.2 | 0.5 | 2.54 |
| 5 pin | 12.7 | |||||
| 6 pin | 15.3 | |||||
| 7 pin | 17.8 | |||||
| 8 pin | 20.4 | |||||
| 9 pin | 22.9 | |||||
| 10 pin | 25.4 | |||||
| 11 pin | 28.0 | |||||
| 12 pin | 30.5 | |||||
| 13 pin | 33.1 | |||||
| 14 pin | 35.6 | |||||
| Rating | |||||||

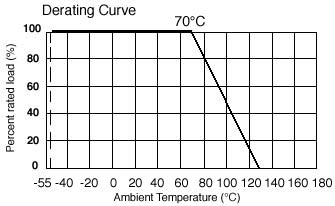

| Style | Power Rating @ 70°C |
Max. Working Voltage | Max. Overload Voltage | Dielectric Withstsnding Voltage |
Resistance Range E-12 Series |
Resistance Tolerance | Operating Temp. Range |
| RNL A | 0.125W | 100V | 150V | 200V | 10 - 1M |
±2% ±5% |
-55°C ~ +155°C |
| RNL B | 0.2W | 100V | 150V | 200V | 10 - 1M |
||
|
| Standard Resistance Range (Ohm) E-12 Series | |||||||||||
| 10 | 12 | 15 | 18 | 22 | 27 | 33 | 39 | 47 | 56 | 68 | 82 |
| 100 | 120 | 150 | 180 | 220 | 270 | 330 | 390 | 470 | 560 | 680 | 820 |
| 1K | 1.2K | 1.5K | 1.8K | 2.2K | 2.7K | 3.3K | 3.9K | 4.7K | 5.6K | 6.8K | 8.2K |
| 10K | 12K | 15K | 18K | 22K | 27K | 33K | 39K | 47K | 56K | 68K | 82K |
| 100K | 120K | 150K | 180K | 220K | 270K | 330K | 390K | 470K | 560K | 680K | 820K |
| 1M | |||||||||||
| * Combination of different values available | |||||||||||
| Performance Specifications | |||||||||||||||||
| Characterisitcs | Test Methods | Limits | |||||||||||||||
| Temperature coefficient JIS -C -5202 5.2 |
-55°C ~ +155°C | ± 200PPM/°C for 50 - 1M ± 250PPM/°C for <50 or>1M |
|||||||||||||||
| Temperature cycling JIS - C - 5202 7.4 |
* Step 1-4 Continuous 5 Cycles |
 R < ± (0.5% +0.1) |
|||||||||||||||
| Dielectric withstanding voltage JIS - C - 5202 5.7 |
Resistors shall be clamped in the trough of a 90° metalic V-block and shall be tested at AC potential respectively specified in the above list for 60 +10 / -0 seconds. |
No evidence of flashover, mechanical damage, arcing or insulation break down. | |||||||||||||||
| Short-time overload JIS - C - 5202 5.5 |
Rated voltage x 2.5 for 5 seconds. | R < ± (0.5% +0.1) |
|||||||||||||||
| Resistance to soldering heat JIS - C - 5202 6.4 |
350°C ± 10°C, for 3 seconds. | R < ± (0.5% +0.1) |
|||||||||||||||
| Insulation Resistance JIS - C - 5202 5.6 |
100V fir 1 min. | 10,000 Megaohm Min. | |||||||||||||||
| Terminal strength JIS - C - 5202 6.1 |
Tensile: 1Kg, 30 seconds Bending: 500g, 2 Times |
R < ± (0.5% +0.1) |
|||||||||||||||
| Thermal Shock JIS - C - 5202 7.4 |
Load V, Room Temp. 30 mins. Unload, -55°C, 15 mins. Over 2 hrs in Room Temp. before measuring |
R < ± (0.5% +0.1) |
|||||||||||||||
| Solderability JIS - C - 5202 6.5 |
235°C ± 5°C, 3 sec. | Covering 95% | |||||||||||||||
| Moisture load life JIS - C - 5202 7.9 |
40°C, 90-95%RH Rated Voltage for 1,000 hrs. |
R < ± (0.3% +0.1) |
|||||||||||||||
| Load life JIS - C - 5202 7.10 |
70°C at Rated Voltage for 1,000 hrs. | R < ± (0.3% +0.1) |
|||||||||||||||
| Order Example: RNL-10 Pin Common 4.7K 5% |

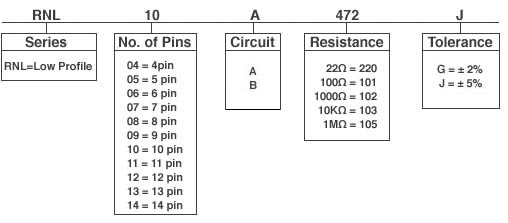

| Ordering Procedure |
 |
