High Power Rating Electrical Specifications | ||||
Type
|
Power Rating
at 70°C |
Operationg Temp.
Range |
Resistance Range (m)
1%, 2%, 5% |
TCR
(PPM°C) |
SR03 (0603)
|
1/8W
|
-55 ~ + 155°C
|
51 ~ 100
101 ~ 500 501 ~ 1010 |
±400
±300 ±200 |
SR05 (0805)
|
1/4W
|
|||
SR06 (1206)
|
1/2W
|
-55 ~ + 155°C
|
10 ~ 200
21 ~ 50 51 ~ 500 501 ~ 1000 |
±600
±400 ±300 ±200 |
SR13 (1210)
|
3/4W
|
|||
SR10 (2010)
|
1W
|
|||
SR12 (2512)
|
1.5W
|
|||
SR12 (2512)
|
2W
|
Low TCR Electrical Specifications | |||||
Type
|
Power Rating
at 70°C |
Operationg Temp.
Range |
Resistance
Tolerance |
Resistance Range
(m) |
TCR (PPM°C) |
SR06 1206
|
1/4W
|
-55 ~ + 155°C
|
±1%, ±2%, ±5%
|
100 ~ 1000
|
±100
|
SR13 1210
|
1/2W
|
100 ~ 1000
|
±100
|
||
SR10 2010
|
3/4W
|
100 ~ 1000
|
±100
|
||
SR12 2512
|
1W
|
100 ~ 1000
|
±100
|
||
SR37 3720
|
1W
|
100 ~ 500
|
±100
|
||
SR75 7520
|
2W
|
50 ~ 350
|
±100
|
||
Operating Current = √(P/R), Operating Voltage V= √(PR) |
Performance Specifications: |
1 | Temperature Coefficient of Resistance | As Spec | MIL-STD-202F Method 304 +25/-55/+25/+125/+25°C. |
2 | Short Term Overload | ±(0.5% + 0.05) | JIS-C-5202-5.5 RCWV 2.5orMax Overload Voltage 5seconda |
3 | Dielectric Withstand Voltage | by Type | MIL-STD-202F Method 301 Apply Max Overload Voltage for 1 minute |
4 | Insulation Resistance | >1000M | MIL-STD-202F Method 302 Apply 100Vdc for 1 minue |
5 | Thermal Shock | ±(0.5% + 0.05) | MIL-STD-202F Method 107G -55°C.~125°C, 100cycles |
6 | Load Life | ±(1% + 0.05) | MIL-STD-202F Method 108A RCWV 70°C 1.5 hours on, 0.5 hours off 1000~1048 hours |
7 | Humidity (Steady State) |
±(1% + 0.05) | MIL-STD-202F Method 103B 40°C, 90-95%RH, RCWV 1.5 hours on, 0.5 hours off 1000~1048 hours |
8 | Resistance to Dry Heat | ±(0.5% + 0.05) | JIS-C-5202-7.2 96 hours @ +125°C without load |
9 | Low Temperature Operation | ±(0.5% + 0.05) | JIS-C-5202-7.1 1 hour, -65°C followed by 45 minutes of RcWV |
10 | Bending Strength | ±(0.5% + 0.05) | JIS-C-5202-6.1 Bending Amplitude 3mm for 10 seconds |
11 | Solderability | 95% min. coverage | MIL-STD-202F Method 208H 235°C ±5°C, 2±0.5 (sec) |
12 | Resistance to Solderimng Heat | ±(0.5% + 0.05) | MIL-STD-202F Method 2010E 260±5°C, 10 ±1second |

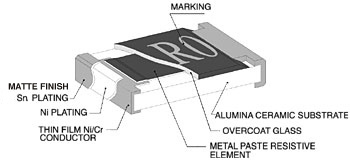

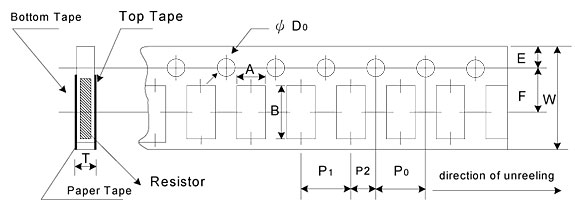

Paper Tape Specifications |
Unit: mm
|
||||||||||
Codes | A | B | W | E | F | P0 | P1 | P2 | Dia. D0 | T |
SR01 | 0.40±0.05 | 0.70±0.05 | 8.00±0.10 | 1.75±0.05 | 3.5±0.05 | 4.00±0.10 | 2.00±0.05 | 2.00±0.05 | 1.55±0.05 | 0.42±0.02 |
SR02 | 0.70±0.05 | 1.16±0.05 | 2.00±0.05 | 0.40±0.03 | ||||||
SR03 | 1.10±0.05 | 1.90±0.05 | 4.00±0.10 | 0.60±0.03 | ||||||
SR05 | 1.60±0.05 | 2.37±0.05 |
4.00±0.10
|
0.75±0.05 | ||||||
SR06 | 2.00±0.05 | 3.55±0.05 |
4.00±0.10
|
0.75±0.05 | ||||||
SR13 | 2.75±0.05 | 3.4±0.05 |
4.00±0.10
|
0.75±0.05 |

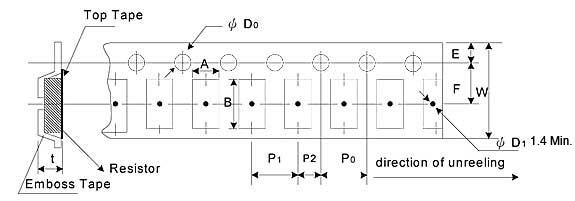

Emboss Plastic Tape Specifications |
Unit: mm
|
||||||||||
Codes | A | B | W | E | F | PO | P1 | P2 | Dia D0 | T |
SR10 | 2.85±0.10 | 5.45±0.10 | 12.0±0.10 | 1.75±0.010 | 5.50±0.05 | 4.00±0.05 | 4.00±0.10 | 2.00±0.05 | 1.50±0.010 | 1.00±0.20 |
SR12 | 3.40±0.10 | 6.65±0.10 |
12.0±0.10
|
1.75±0.010
|
5.50±0.05
|
4.00±0.05
|
4.00±0.10
|
2.00±0.05
|
1.50±0.010
|
1.00±0.20
|
SR25 | 3.50±0.20 | 6.80±0.20 | 12.0±0.30 |
1.75±0.010
|
5.50±0.010
|
4.00±0.010
|
4.00±0.10
|
2.00±0.05
|
1.55±0.010
|
1.00±0.20 |
SR37 | 2.50±0.20 | 4.45±0.20 | 12.00±0.30 | 1.75±0.010 |
5.50±0.05
|
4.00±0.05
|
4.00±0.10
|
2.00±0.05
|
1.50±0.010
|
1.50±0.20 |
SR75 | 2.50±0.20 | 8.30±0.20 |
16.00±0.30
|
1.75±0.10
|
7.80±0.05
|
4.00±0.05
|
4.00±0.10
|
2.00±0.05
|
1.50±0.010
|
1.50±0.010
|

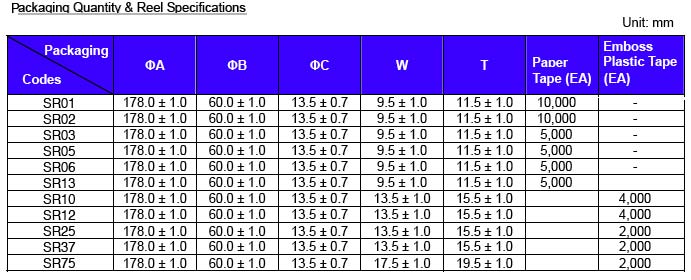

Packaging | |

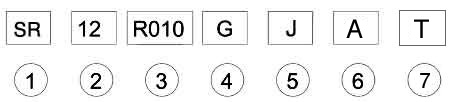

How To Order: |
||||
Example: SR 12 .01 2% 600ppm 1.5W T/R | ||||
|
||||
|
||||
