Ultra Precision Thin Film Chip Resistor
Type VR 4.7 ohm to 1 meg
±.01% to ±0.1%, TCR 5, 10, 15 & 25 PPM

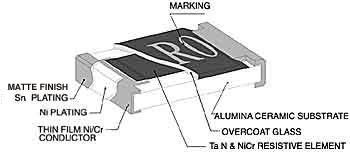

Construction
Features:
Tolerance from ±0.01% to ± .1%
Thin film Ni/Cr Resistor
TCR from 5ppm ~ ±15ppm
Applications:
Medical Equipment, Measurement Instrument, Communication Devices, Printer Equipment
For .02% tolerances use .01% range
Consult factory for resistance values & T.C.'s outside of specifications shown

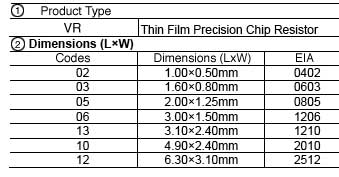

How To Order
Example: VR 06 100 .05% 5ppm T/R


<100 use R for decimal
Example: 1 = 1R00
