| FILM RESISTOR Thick Film Networks |
| SINGLE-IN-LINE SIP RESISTORS |
|
| APPLICATIONS: Resistor networks are designed for use as pull up and pull down resistors,TTL, ECL line terminating resistors, LED current limiting resistors and telecommunication networks. | |
| SPECIFICATIONS: | |
| CONFORMAL COATED. | |
| TEMPERATURE COEFFICIENT: | ± 300PPM standard |
| ± 100PPM available | |
| TCR TRACKING: | 50 ppm max. |
| OPERATING TEMPERATURE: | -30°C to +125°C |
| THERMAL SHOCK: | ± 5% MAX. |
| MOISTURE RESISTANCE: | ± 5% MAX. |
| TERMINAL STRENGTH: | ± 25% max. |
| RESISTANCE to SOLDERING HEAT: | ± 1.0 % max. |
| LOAD LIFE: | 1000 hrs. ± 3.0% max. |
| TEMPERATURE CYCLING: | ± 1.0% max. |
| SHOCK and VIBRATION: | ± 25% max. |
| SOLVENT RESISTANCE: | Resists industrial cleaning agents per MIL-STD-202E |
| LEAD SOLDERABILITY: | Meets MIL-STD-202 Method 208 |
| No. Pins |
No. Elements |

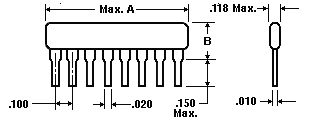

Dimensions (A) |
Height (B) |
Max.Oper.Voltage |
||||||||
| X | Y | Z | Low | Med | High | Low | Med | High | Low | Med | High | |
| 4 | 3 | - | 3 | .398 | .433 | - | .197 | .315 | .433 | 50V | 125V | 250V |
| 5 | 4 | - | 4 | .500 | .531 | - | .197 | .315 | .433 | 50V | 125V | 250V |
| 6 | 5 | 3 | 5 | .598 | .630 | - | .197 | .315 | .433 | 50V | 125V | 250V |
| 7 | 6 | - | 6 | .697 | .725 | .728 | .197 | .315 | .433 | 50V | 125V | 250V |
| 8 | 7 | 4 | 7 | .799 | .827 | .827 | .197 | .315 | .433 | 50V | 125V | 250V |
| 9 | 8 | - | 8 | .898 | .925 | .925 | .197 | .315 | .433 | 50V | 125V | 250V |
| 10 | 9 | 5 | 9 | 1.00 | 1.04 | - | .197 | .315 | .433 | 50V | 125V | 250V |
| 11 | 10 | - | 10 | 1.10 | 1.14 | - | .197 | .315 | .433 | 50V | 125V | 250V |
| 12 | 11 | 6 | 11 | 1.20 | 1.24 | - | .197 | .315 | .433 | 50V | 125V | 250V |
| 13 | 12 | - | 12 | 1.30 | 1.34 | - | .197 | .315 | .433 | 50V | 125V | 250V |
| 14 | 13 | 7 | 13 | 1.40 | 1.44 | - | .197 | .315 | .433 | 50V | 125V | 250V |
| Power Rating - Standard Circuits X, Y & Z | |||
| Profile | Rated Wattage @ 70° C |
Max. Operating Voltage |
 |
| Low | .125W | 50V | |
| Medium | .125W | 125V | |
| High | .250W | 250V | |
| STANDARD RESISTANCE | ||||
| 33 | 220 | 1K | 5.6K | 47K |
| 47 | 270 | 1.2K | 6.0K | 68K |
| 56 | 330 | 1.5K | 6.8K | 82K |
| 68 | 390 | 1.8K | 8.2K | 100K |
| 82 | 470 | 2.2K | 10K | 220K |
| 100 | 510 | 2.7K | 12K | 390K |
| 120 | 560 | 3.3K | 15K | 470K |
| 150 | 680 | 3.9K | 22K | 680K |
| 180 | 820 | 4.7K | 33K | 1M |
