Power Resistor TP100

Construction

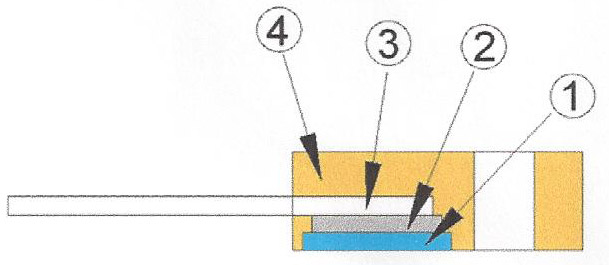

Power Resistor TP100 Construction
1 Alumina Substrate 2 Lead
2 Resistor Layer 4 Molding

Features

  • 100 Watts at 25°:C case temperature heat sink mounted
  • TO-247 style power package
  • Single M3 screw mounting to heat sink
  • Molded case for protection and easy to mount
  • Electrically isolated case
  • Non-inductive design

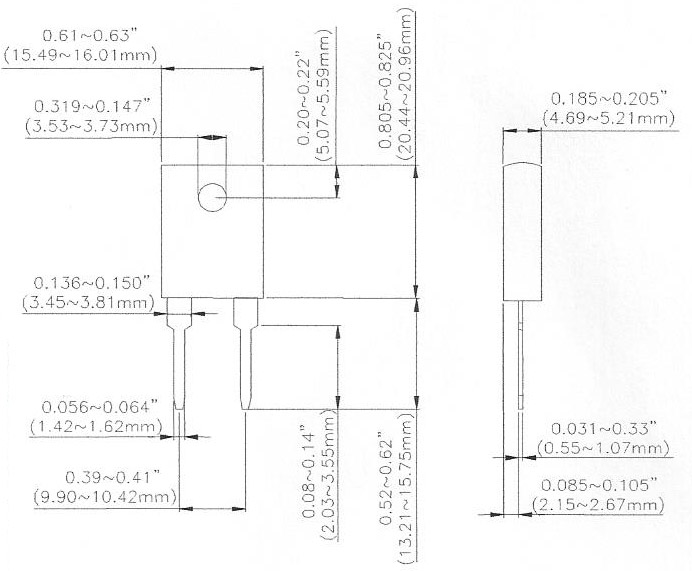

Dimensions Unit:mm

Type Weight (g)
(1000pcs)
TP100 3381




Applications

  • Gate Resistors in Power Supplies
  • Snubbers
  • Load and Dumping Resistors in CRt Monitors
  • Terminal Resistance in RF Power Amplifier
  • Voltage Regulation
  • Low Energy Pulse Loading
  • UPS

Electrical Characteristics Specifications

Item Resistance Range TCR
(PPM/°C)
Type ±0.5% ±1% ±5% ±10%
TP100 - - 0.05Ω-1Ω No Specified
- >1Ω-3Ω ±300
- >3Ω-10Ω ±100
±200
>10Ω-10KΩ ±50
±100
±200
  • Operating Voltage: 700V max.
  • Dielectric Strength: 1800VAC
  • Insulation Resistance: 10GΩ min.
  • Working Temperature Range: -65°C to +150°C

How To Order:

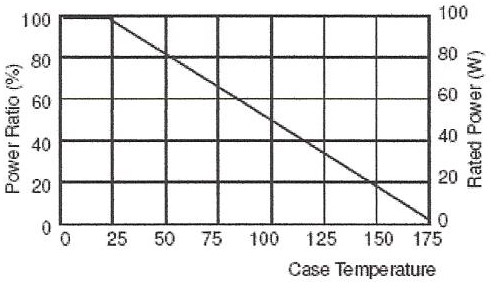

Derating Curve

Part Numbering

TP
Product Type:
100
Power
  • 100: 100 Watts
J
Resistance Tolerance
  • F: ±1%
  • J: ±5%
  • K: ±10%
B
Packaging Code
  • B: Bulk
D
TCR
(PPM/°C)
  • D: ±50
  • E: ±100
  • F: ±200
  • G: ±300
  • -: No Specified
1001
Resistance
  • R100: 0.1Ω
  • 0100: 10Ω
  • 4700: 470Ω
  • 1001: 1000Ω
  • 1002: 10000Ω






Environmental Characteristics

Item Requirement Test Method
Temperature Coefficient of Resistance (T.C.R.) As Spec. Referenced to 25°C, ΔR taken at +105°C
Load Life ΔR±1% Rated power, 2000 hours
Solderability 90% min. coverage 245±5°C for 3 seconds
Momentary Overload ΔR±0.5% 1.5 times rated power and V (dc) ≤ 1.5V Max. for 5 seconds
Dielectric Strength ΔR±0.15% 1800v AC, 60 seconds
Thermal Shock ΔR±0.3% -65°C~150°C, 100 cycles
Terminal Strength ΔR±0.2% (Pull Test) 2.4N
Vibration, High Frequency ΔR±0.4% 20g peak
  • Lead Material: Tinned Copper
  • Maximum Torque: 0.9 Nm
  • When in Free Air at 25°C, the TP100 is Rated for 3.5W
  • The Case Temperature is to be used for the Definition of the Applied Power Limit
  • The Case Temperature Measurement must be made with a Thermocouple Contacting the Center of the Component mounted on the Designed Heat Sink.
  • Thermal Grease should be Applied Properly
