Ultra High Voltage Ceramic Power Resistor
TYPE IX - INDIRECT WATER COOLING
The IX resistor is designed to be indirectly cooled with water running through the water-cooled block assembled on both sides of the resistors. In view of the current trend to exploit the large power circuits with semiconductors, demands are increasingly getting higher for non-inductive resistors with a compact design but a large energy capacity. IX resistors connected in series or in parallel will comply with the requirements on the voltage and current load.
Also available
HS700 water cooled
Typical Applications:
(1) Surge absorber of high frequency thyristor inverter
(2) Load resistor of high voltage circuits
(3) Dumping resistor of the nuclear fusion
(4) Large capacity load resistor
Characteristics of individual resistor used for IX:
Resistance Tolerance: 5, 10, & 20% Thermal coefficient: -0.5~0.1%/°C max.
Individual resistor: ASW7515 Thermal expansion coefficient: 4~7X10-6
Element dimensions: Ø7XØ20X15tmm Max. working temperature: 250°C
Bulk density: 2.2~2.7 Allowable injection energy: 10kJ max.
Specific heat: 0.15~0.3cal/g°C max. Allowable current: 800 A max.
Thermal conductivity: 0.003cal/cm.sec.°C max.
Stainless steel hose joints shown above or Swageloks can be assembled.
Refer to USAGE PAGE for optimum performance of this resistor.
Features:
No water leakage Mounting legs are insulated from foreign elements
Absorbs large amounts of energy Non-inductive resistor
Higher withstand voltage. 10 kV per element at 1.2 x 50 µ sec waveform
Short time rated power 500 W per element
Large current capacity due to large cross-sectional area of the element
IX STANDARD SPECIFICATIONS:
Type No. 20°C
Rated
Power (W)		 Element

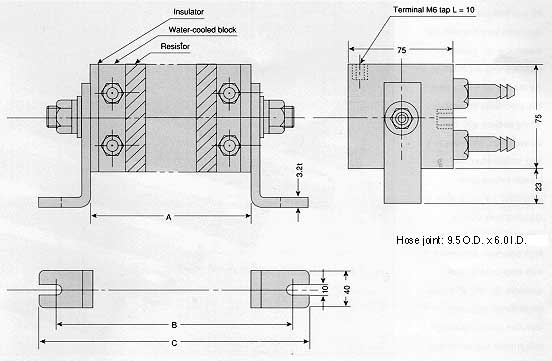

Qty.		 Dimensions (mm) Resistance Range
 Allowable injection
energy (joule)
A B C Min. Max.
IX1
 350 1 61 110 131 0.5 20 10
IX2
 770 2 94 143 164 1 40 20
IX3
 1050 3 127 176 197 1.5 60 30
IX4
 1400 4 160 209 230 2 80 40
IX5
 1750 5 193 242 263 2.5 100 50

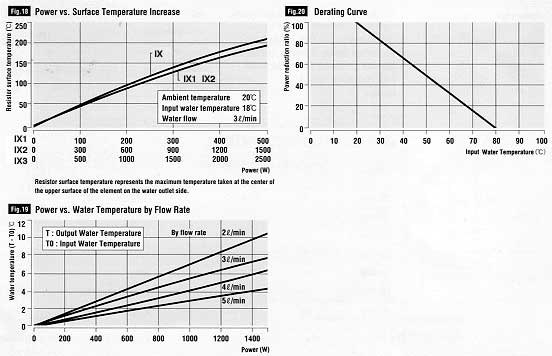

Notes:
(1) Water is to be inputted at 3 L/min. minimum and 6 kg/cm2 maximum.
(2) Use hose with Ø 3/8 inch ID.
(3) Use pure water of 1M

ORDERING INFORMATION
Example: 1050W 10 ohm 5 %
IX3
10R0
J
Type
Resistance
Tolerance
Use R for decimal
J = 5%
K = 10%
M = 20%
