POWER RESISTOR CW Series - Wirewound/Power Film
2W - 25W
(Bathtub Type)
Features:
Economical
Fireproof   - Tolerances: 5% and 10%
Fuse type
Non-inductive types
Stand off or feet type available in sizes 3 watt to 10 watt. Specify by inserting letter "F" after type number. Example: CW5F.
APPLICABLE SPECIFICATION: EIA Standard RS-344 Type
OPERATING TEMPERATURE: -55° to +275°C

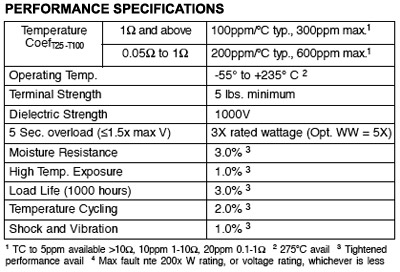

Construction:
Wirewound: Premium grade resistance wire is wound on a woven fiberglass core. Tinned copper terminals are tightly crimped or welded (depending on resistance value) to the banded core. The wound unit is potted in a high quality Steatite Ceramic case using high temperature, high thermal conducting inorganic potting compound. This results in a completly fireproof inorganic package, highly resistant to solvents and impervious to moisture.
Power Film: Power film types have metal oxide resistor element.


Lead length 35 ± 5 mm
Dimension Shown in mm
M-O P/N Wattage Length
(L) ±1
Width
(W) ±1
Height
(H) ±1
Lead Dia.
(d) +.02/-.05
Max.
Working
Voltage
Resistance
Range (ohms)
Wirewound
Power Film
CW2  2 18 7 7
28
65 .1 - 27 28 - 33K
CW3 3 22 8 8 32 150 .1 - 39 40 - 56K
CW5 5 22 10 9 35 200 .1 - 47 48 - 100K
CW7 7 35 10 9 35 350 .1 - 680 681 - 200K
CW10 10 49 10 9 35 540 .1 - 910 911 - 200K
CW15 15 49 12.5 11.5 35 670 .1 - 1K
CW20 20 60 14.5 13.5 35 740 .1 - 1.2K
CW25 25 64 14.5 13.5 35 890 .1 - 1.2K
ORDERING INFORMATION
Example: 10W 10 ohm 5%
CW10
10R0
J
Type
Resistance
Tolerance
For Metal Oxide add M after type
4 digit. <100 use R for decimal. >100 4th digit is multiplier
J = 5%
K = 10%
TO ORDER PRODUCT
E mail: microohm@mail.com
Call Toll Free: 1-800-845-5167
